New Recreational Units » Ski-Doo » MX Z Renegade Rotax® 800R Power T.E.K.
Model Quick Search

$10,199.00

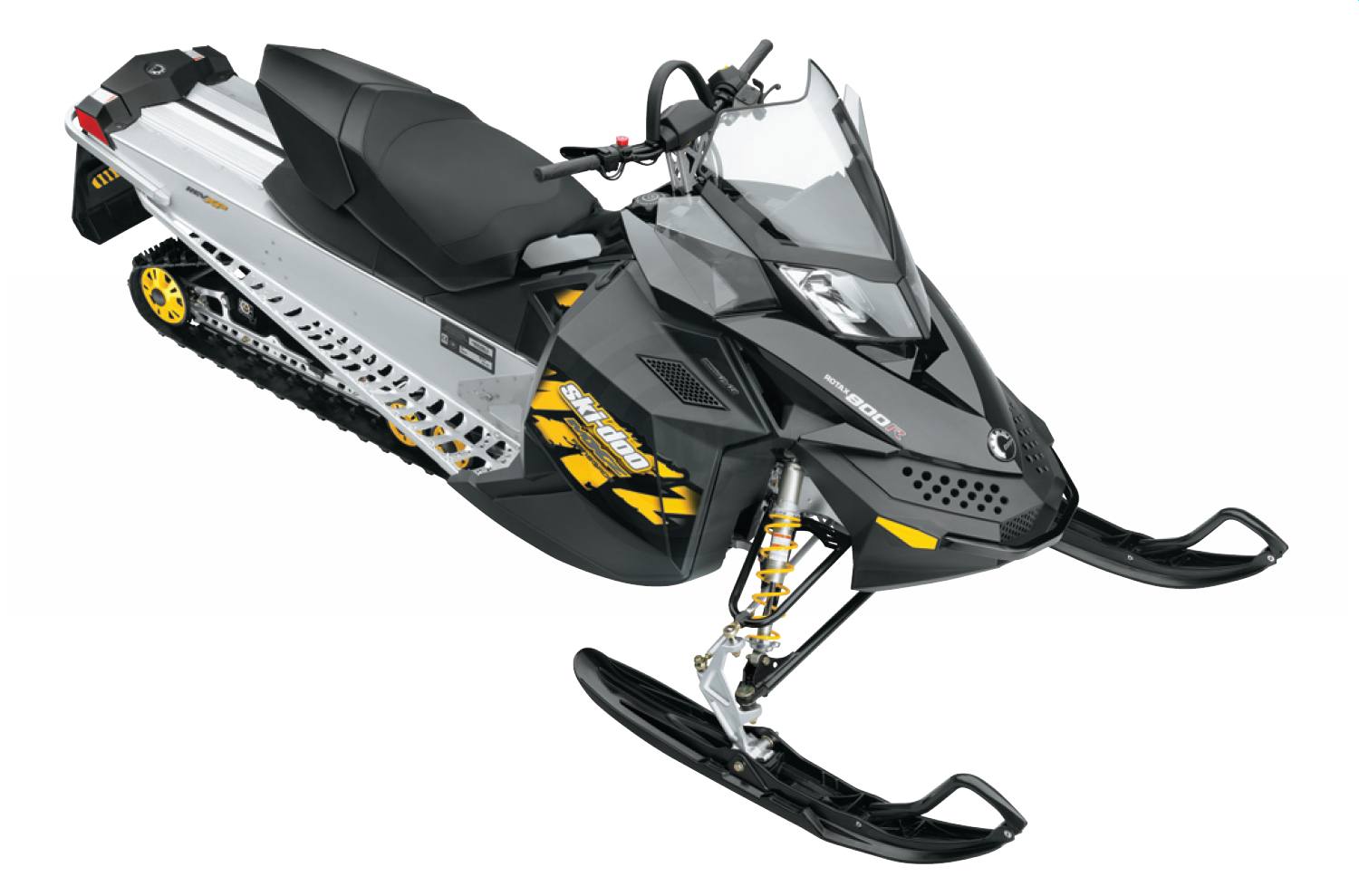

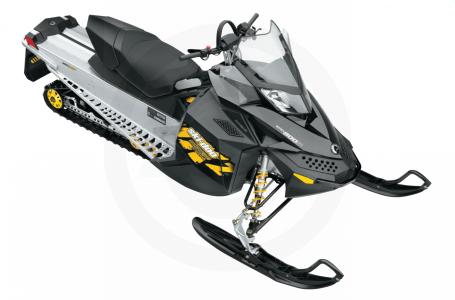

2009 Ski-Doo MX Z Renegade Rotax® 800R Power T.E.K.
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

For the experienced snowmobiler who rides in every condition: trails, bumps and off-trail.

  • 151 hp 800R Power T.E.K. engine choice
  • REV-XP platform
  • Brembo hydraulic brake
  • Dual A-arm front suspension
  • Pilot™ 5.7
  • KAYABA‡ HPG™ shocks
  • SC™-5 rear suspension
  • Lightweight 16 x 137 x 1.25-inch RipSaw‡ track
  • Analog gauge w/ display
  • Electric fuel gauge
  • RER™ electronic reverse
  • Riser block
COLOR
  • Yellow/Black
  • Deep Black
ENGINE
  • Engine: Rotax 800R Power T.E.K.
  • Engine details: Liquid-cooled, 3-D R.A.V.E.™
  • Cylinders: 2
  • Displacement: 799.5 cc / 48.8 in³
  • Bore: 82 mm / 3.2 in
  • Stroke: 75.7 mm / 3 in
  • Maximum engine speed: 8150 RPM
  • Carburetion: 2X TM-40
  • Recommended fuel type: Premium unleaded
  • Minimum octane: 91
  • Fuel tank: 40 liters / 10.6 gallons
  • Oil tank: 3.7 liters / 3.9 quarts
  • Exhaust system: Single tuned-pipe, baffle muffler
POWERTRAIN
  • Drive clutch type: TRA™ VII
  • Driven clutch type: QRS
  • Engagement: 3800 RPM
  • Clutches center distance: 258.7 mm / 10.18 in
  • Small sprocket number of teeth: 25
  • Large sprocket number of teeth: 45
  • Drive sprocket number of teeth: 8
  • Drive sprocket diameter: 183 mm / 7.2 in
  • Brake system: Brembo hydraulic brake
SUSPENSION
  • Front suspension: Dual A-arm front suspension
  • Front shock: KAYABA HPG
  • Front suspension max. travel: 229 mm / 9 in
  • Rear suspension: SC-5
  • Front arm shock: KAYABA HPG
  • Rear arm shock: KAYABA HPG
  • Rear suspension max. travel: 406 mm / 16 in
DIMENSIONS
  • Vehicle overall length: 3110 mm / 122.4 in
  • Vehicle overall width: 1217 mm / 47.9 in
  • Vehicle overall height: 1168 mm / 46.0 in
  • Official dry weight: 202 kg / 445 lb
  • Ski stance: 1195 mm / 47 in
  • Ski overall length: 1066 mm / 42 in
  • Ski width: 145 mm / 5.7 in
  • Track nominal width: 406 mm / 16 in
  • Track nominal length: 3487 mm / 137 in
  • Track profile height: 31.8 mm / 1.25 in
ADDITIONAL FEATURES
  • Skis: Pilot 5.7
  • Seating: REV-XP
  • Electric start: Optional
  • Heated grips: Standard
  • Speedometer: Standard
  • Tachometer: Standard
  • Mirrors: Optional
  • Windshield: Medium
  • Handlebar: Riser block (115 mm / 4.5 in)
  • Anti-slip running boards: Standard
NOTES:

BRP reserves the right at anytime to discontinue or change specifications, price, design, features, models or equipment without incurring any obligation.


Specifications

Engine
Engine Type Rotax 800R Power T.E.K., 3-D R.A.V.E.™
Displacement 48.8 cu. in. (799.5 cc)
Cylinders 2
Bore x Stroke 3.2" x 3" (82 x 75.7 mm)
Engine Cooling Liquid-cooled
Carburetion 2X TM-40
Exhaust Single tuned-pipe, baffle muffler
Drivetrain
Brake Type Brembo hydraulic brake
Drive Clutch TRA™ VII
Driven Clutch QRS
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC-5
Rear Travel 16 in. (406 mm)
Ski Type Pilot 5.7
Ski Stance 47 in. (1195 mm)
Track Type RipSaw Track
Track Dimensions 137" x 16" x 1.25" (3487 x 406 x 31.8 mm)
General
Speedometer Standard
Tachometer Standard
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 445 lbs. (202 kg)
Windshield Medium
Color Yellow/Black or Deep Black
Options
Electric Start Optional
Hand & Thumb Warmers Standard
Mirrors Optional

Compare Models

 Print








Year 2009
Manufacturer Ski-Doo
Model MX Z Renegade Rotax® 800R Power T.E.K.
Style Performance
MSRP* $10,199.00
Drivetrain
Brake Type Brembo hydraulic brake
Drive Clutch TRA™ VII
Driven Clutch QRS
Engine
Engine Type Rotax 800R Power T.E.K., 3-D R.A.V.E.™
Displacement 48.8 cu. in. (799.5 cc)
Bore x Stroke 3.2" x 3" (82 x 75.7 mm)
Cylinders 2
Engine Cooling Liquid-cooled
Carburetion 2X TM-40
Ignition
Exhaust Single tuned-pipe, baffle muffler
Alternator
General
Speedometer Standard
Tachometer Standard
Odometer
Headlight
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 445 lbs. (202 kg)
Windshield Medium
Color Yellow/Black or Deep Black
Warranty
Options
Electric Start Optional
Hand & Thumb Warmers Standard
Reverse
Mirrors Optional
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC-5
Rear Travel 16 in. (406 mm)
Ski Type Pilot 5.7
Ski Stance 47 in. (1195 mm)
Track Type RipSaw Track
Track Dimensions 137" x 16" x 1.25" (3487 x 406 x 31.8 mm)
